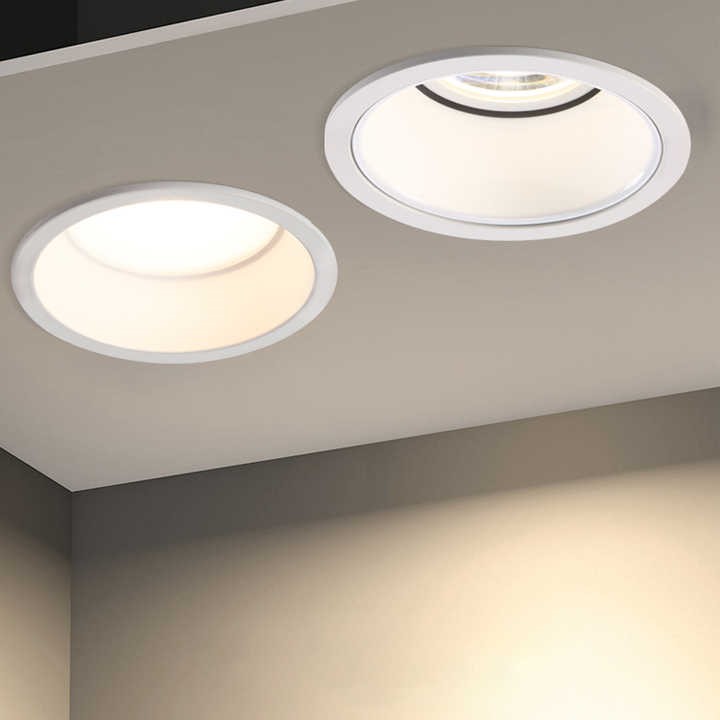

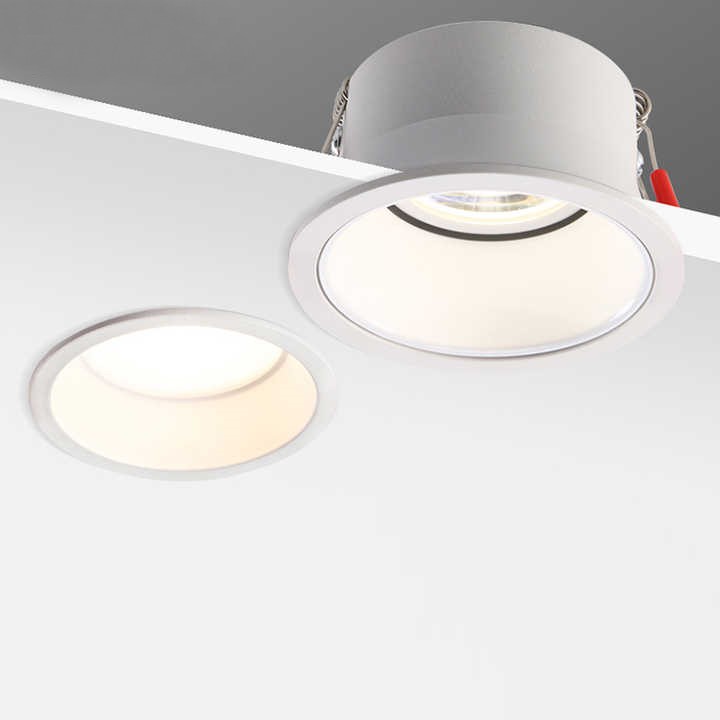

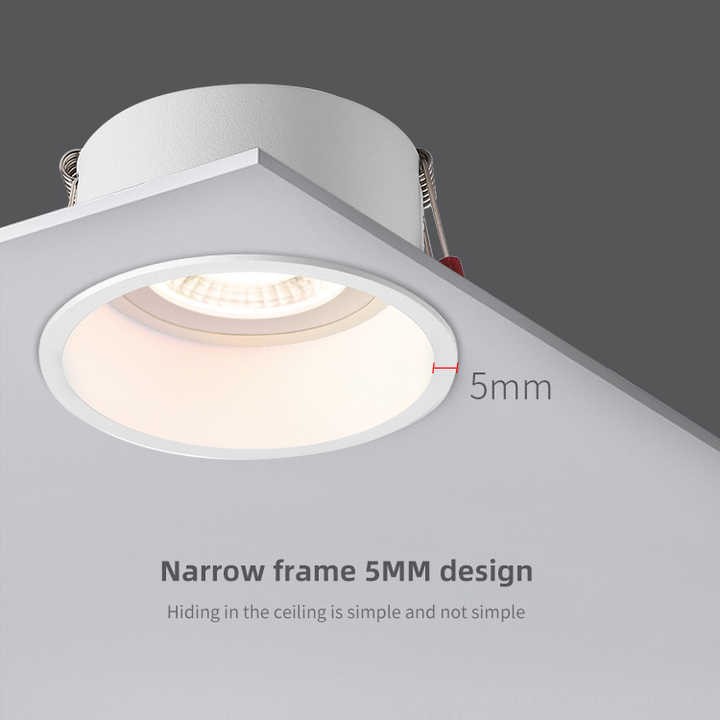

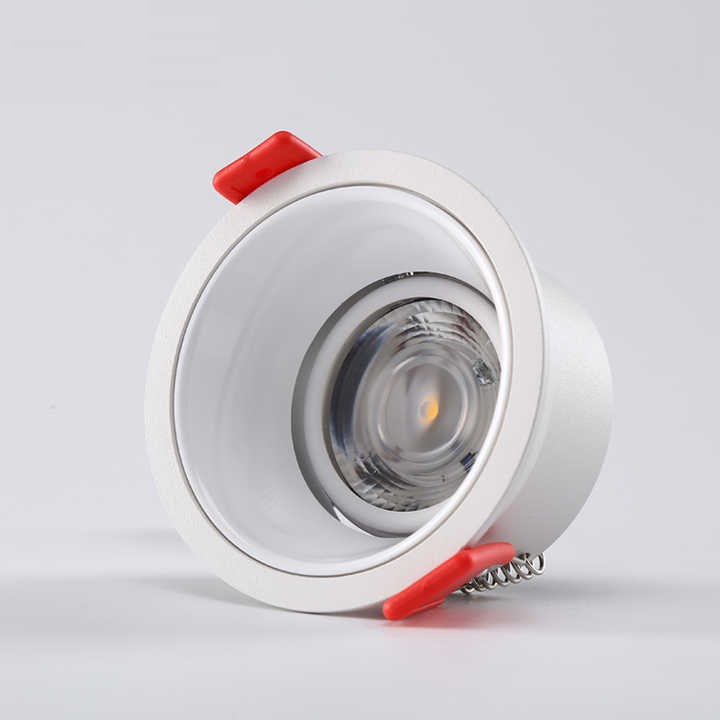

Deep Narrow Frame Downlight is a powerful source of ambient lighting, have a low profile design with a powerful light output, can be purposed to highlight features in home or even be used in landscape lighting. It features an ultra slim outer trim and deep anti-glare baffle giving this fitting that architectural look, suitable for applications such as residential housing, hotel and commercial projects.
SPECIFICATIONS
Product: Recessed Anti-glare spotlight
Category: Commercial Lights
Lighting Classification: LED Spotlight
Wattage: 5/7/9/12/15Watts
Input Voltage: AC185-265V
Materials: Aluminum
Color: Warm White, Cool White, Daylight
CCT(K): 3000K/4000K/6500K
Lumens: 100-120LM/W
Dimensions: φ63xH40mm/ φ83xH47mm/φ103xH50mm
Cut-Out: φ40/47/50mm
Beam Angle: 38°/24°/120°
CRI: >90
IP Rating: IP20
LED Brand: Cree/Bridgelux
Lifespan: 50,000hours
Warranty: 3 Years Warranty
Installation Methods: Recessed

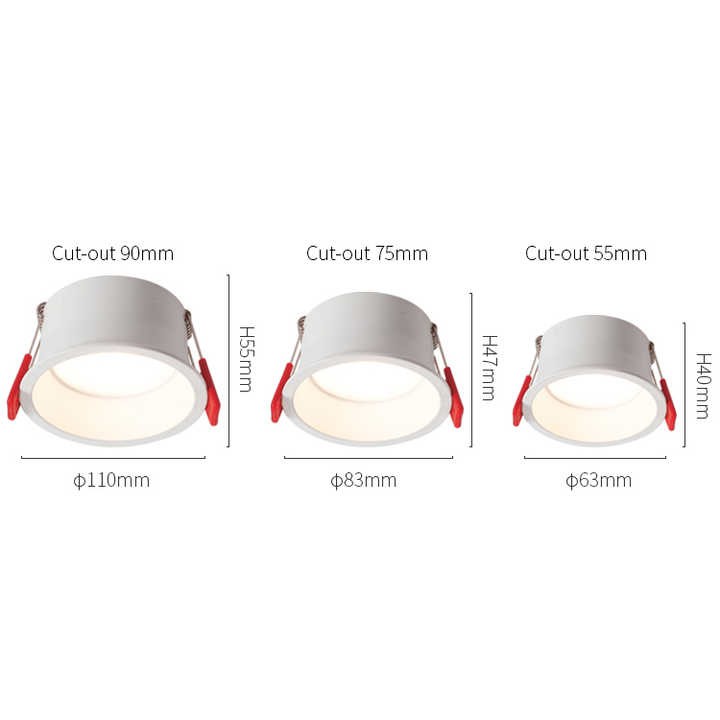

| Model | Wattage | Diameter | Height | Cut-Out |
| DL-0505 | 5W | φ63mm | 40mm | φ55mm |
| DL-0507 | 7W | φ83mm | 47mm | φ75mm |
| DL-0509 | 9W | φ103mm | 50mm | φ95mm |
| DL-0512 | 12W | φ110mm | 55mm | φ95mm |
| DL-0515 | 15W | φ110mm | 55mm | φ90mm |
FEATURES & BENEFITS
- 3000K, 4000K, 6000K, three colour temperatures available.

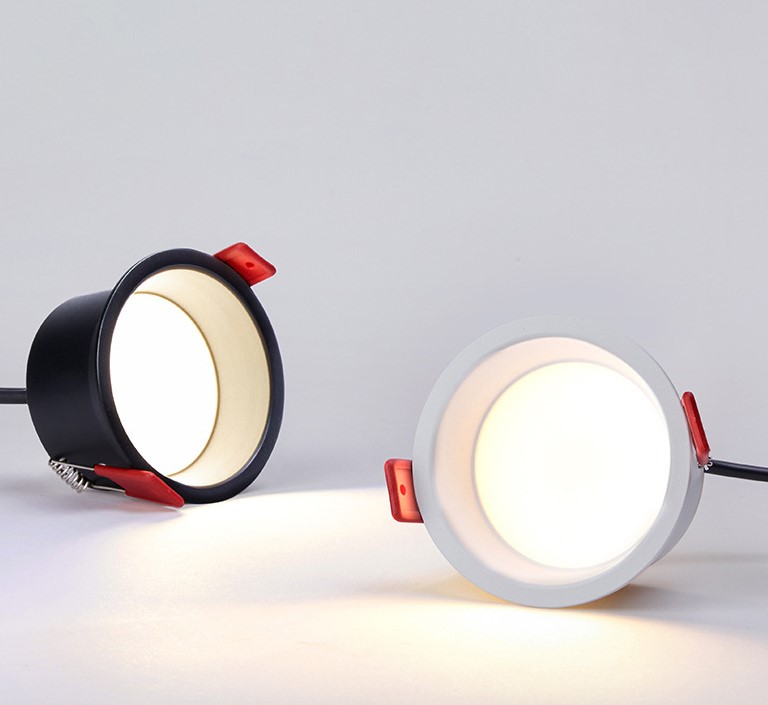

- Two reflector colours available, white, black.
- Lamp body is made of high quality aluminium with one piece die-casting, efficient heat dissipation and safer.

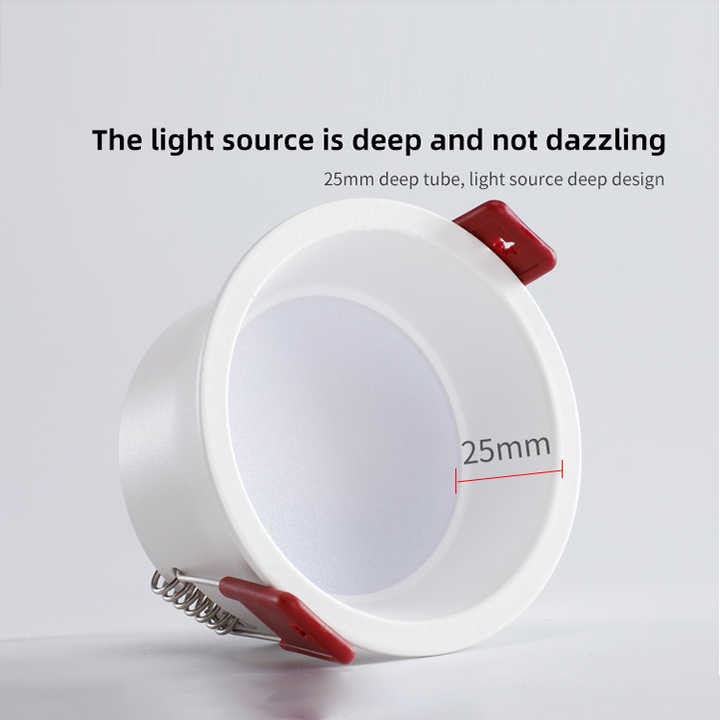

- Deep cup anti-glare, 25mm deep tube, deep hidden light source.
- Adjustable irradiation angle, left and right adjustable 30 degrees lighting, you can freely choose the irradiation angle.

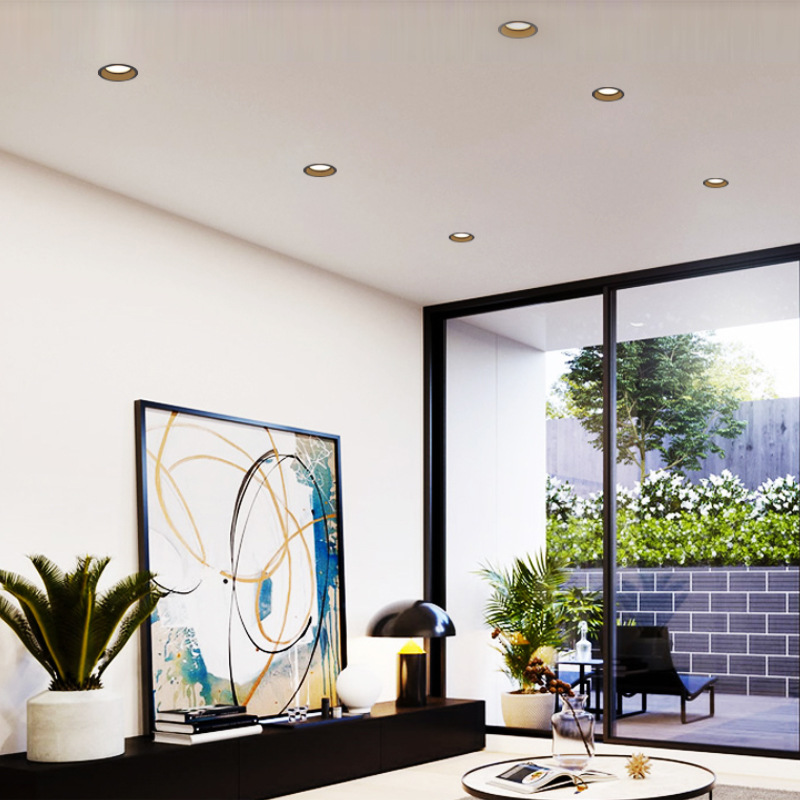

- Suitable for accent lighting in the living room.

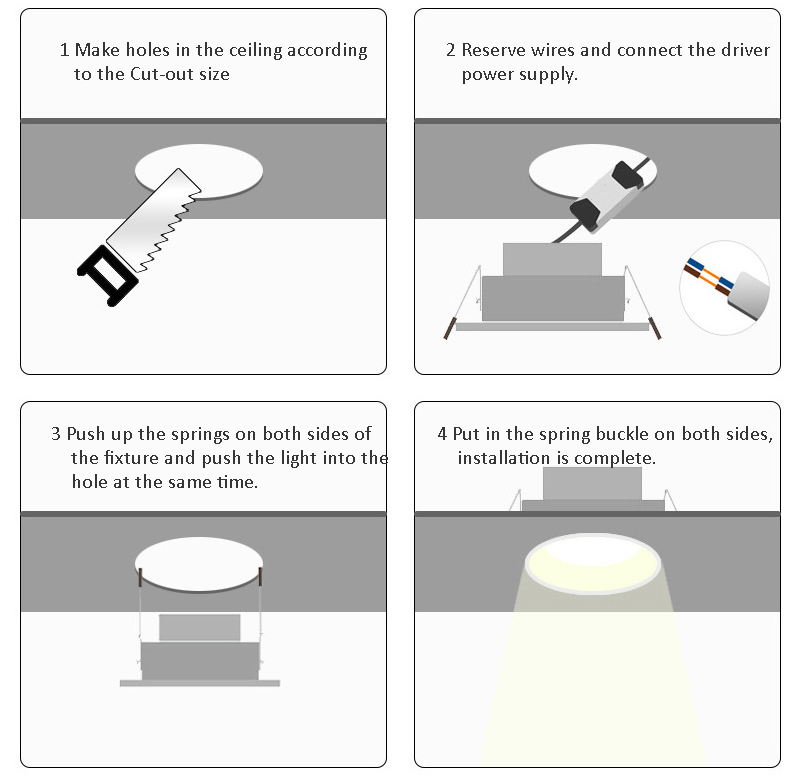

INSTALLATION
APPLICATIONS

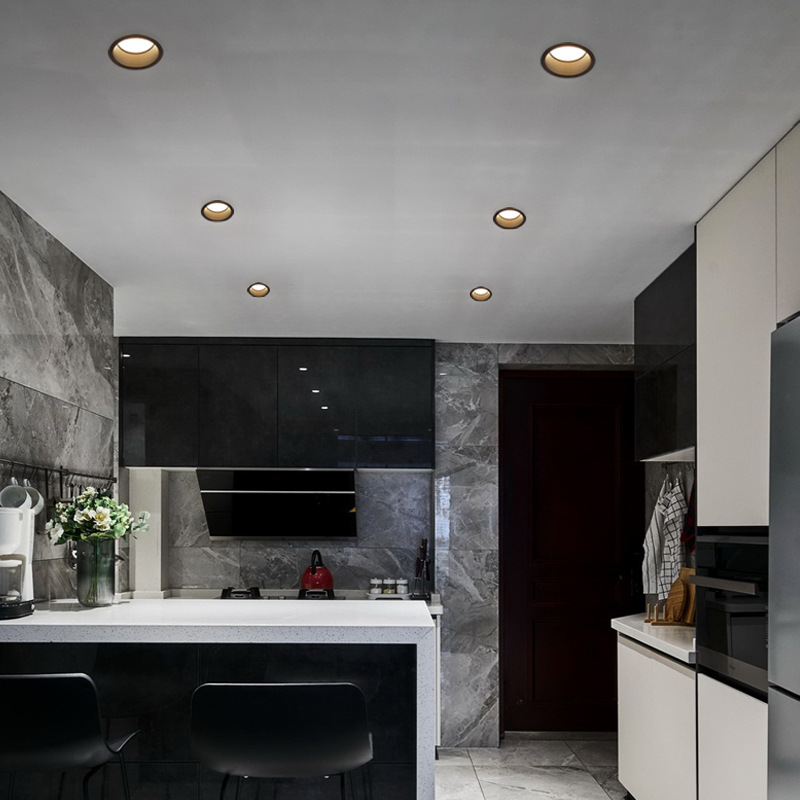

Suitable for accent lighting in the living room, Shop & Shopping Mall, museums, etc.
