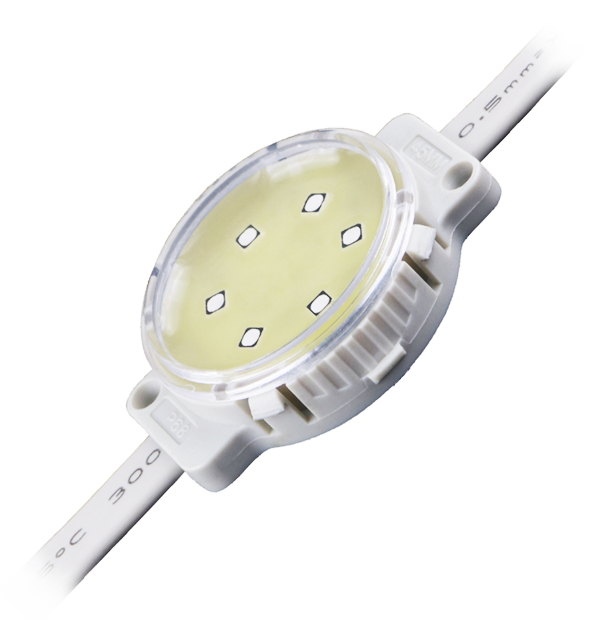

LED Pixel Light RGB 6LEDs D45MM

LED Pixel Light RGB 6LEDs D45MM is made by ABS plastic shell, PC LENs and PCB and red, yellow, green, blue and white 5PIN line (high temperature resistant, cold resistant, UV resistant). this product has high brightness, low power consumption, long life, low voltage, small attenuation, rich colors, etc. Products can achieve effect of flowing water, chase, scanning, etc. Depending on the installation, but it was a composition change different color characters, design, etc. Various kinds of dynamic effect.
Widely used in Amusement parks and theme parks, hotel, KTV entertainment and other backlight or AD decorative lighting, etc.

Email: info@archled.net

Product Features

- This product adopts ultra-high brightness led light source, which is effective in waterproof, anti-UV and anti vulcanization.

- The unique design of the product, a variety of intallation methods, can be punched installation, wire lifting, screw installation, glue

   installation.

- The shell is made of high- strength die-casting base and transparent PC cover. It has superior toughness, better heat dissipation

   performance and fire rating of V-0. It is safer and more reliable.

- The potting glue uses custom PU glue, adding heat-dissipating powder to reduce heat loss and effectively reduce LED light decay

   speed.

- The product adopts the international common standard MDX512 signal, the signal transmission distance is long, and the S-A anti-

   interference technology can grcatly reduce and filter out interference and conduction interference.


Specifications

Model45IC-6Shell MaterialBayer PC+ABS
LED Type3535SMD WaterproofShell ColorGray/Black
LED Qty6PCSGlue Type

PU Heat Dissipation Adhesive

LED ChipCree/Osram/EpistarIP RatingIP67
Driver ICUCS512C3Control ModeDMX512
Working VoltageDC12VGrayscale256/65536
Max. Power1.44WAdress SettingManual
Light Color

RGB

Control System

Online/Offline Control

Beam Angle120°Production TechnologySecondary Encapsulation
Electrical LevelClassIIIWorking Temperature-30℃-60℃
Diffuser MaterialTransparent PCWarrantyThree Years

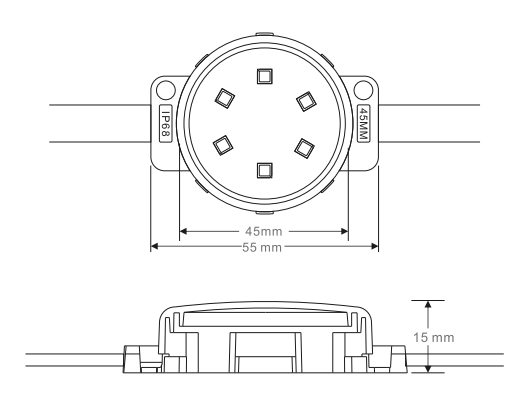

Dimension(mm)





Connection Diagram

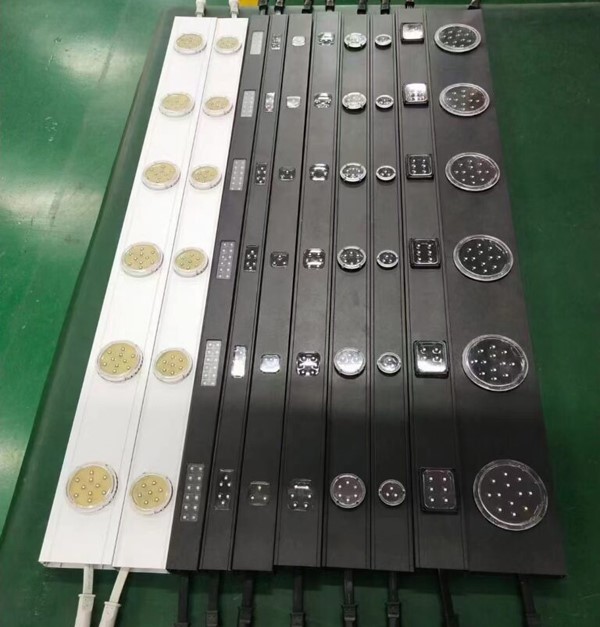

Applications
