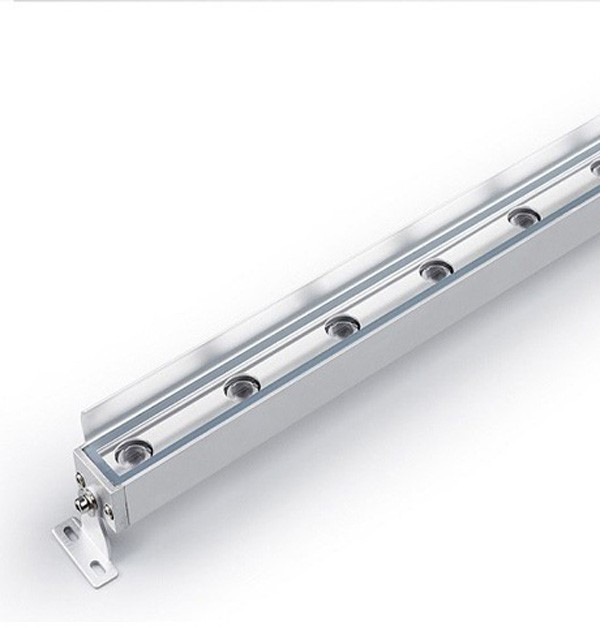

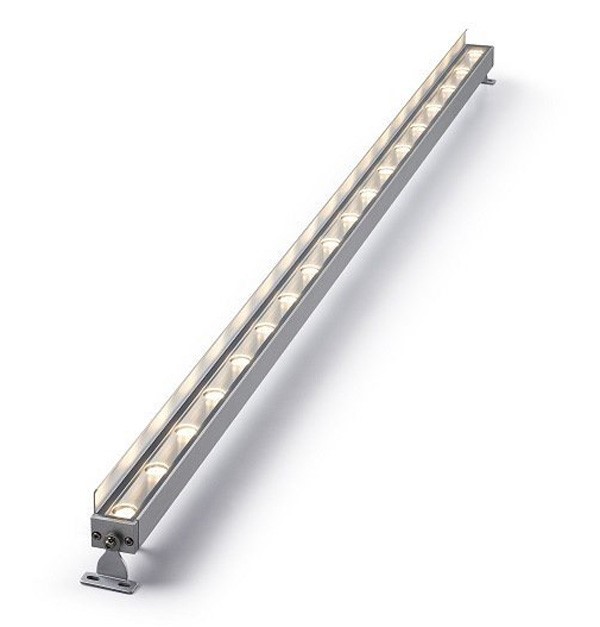

Outdoor Slim LED Linear Wall Washer Bar RGB 18W DC24V 4Pixels 30x22mm

Outdoor Slim LED Linear Wall Washer Bar RGB 18W DC24V 4Pixels 30x22mm is a fully water resistant and robust bright LED fixture, perfect for both interior and exterior use. Available in range of single colors and DMX controllable RGB. Mount the LED wall washer unit to ceilings, floors and walls with the adjustable bracket for different lighting effects. In addition using corrosion resistant extruded aluminium to make the housing extremely robust and hard wearing. Ideally suited to architectural lighting, landscape lighting, garden lighting, facade lighting, theatres, bridges, hotels, shopping centres, and customized projects.

Email: info@archled.net

Product Features

- Made of imported aluminum die-casting, convection cooling design, strong heat dissipation ability, effectively solve the problem of heat

dissipation of lamps and lanterns

- Adopt imported OSRAM high brightness LED chip, Japan Mitsubishi PMMA Lens material, multiple angles can be selected

- Adjustable bracket, equipped with sliding rails, can be freely adjusted, easy to operate, making installation easier and more convenient

- Solid copper pins for male and female connectors, integrated anti-dislodgement rubber tip, easy to install, waterproof and durable.

- All use hexagonal screws, 304 stainless steel material, better rust and water resistance.

- Customized length or watts are available according to your needs.

Specifications

Model	WW-W3022	Input Voltage	DC24V
Dimension	L1000mmW30mmH22mm	Rated Power	18Watts
Housing Material	Die-Cast Aluminum+Tempered Glass	Control Mode	DMX512
Housing Color	Aluminum/Dark gray/ Customized	Address Setting	Manual
Color	RGB/RGBW	Pixels Per Meter	1Pixel/4Pixels
Lighting Source	18PCS 1W LED	IP Rating	IP67
Beam Angle	15°/30°/45°/60°/20°40°/30°60°	Working Temperature	-20~50℃
Chip Brand	EPISTAR/OSRAM/CREE	Warranty	Three Years
Source Life	50,000H	Remarks	Length/Power can be customized
