Recessed Linear LED Downlight are a great way to add a modern and sophisticated edge to your space. These lighting fixtures are one perfect combination of design and functionality and create a sleek and elegant look that is perfect for any space. These lights can be used in many different settings, including retail stores, offices, restaurants and so on. They are commonly used to highlight specific areas or accentuate architectural details. The higher the wattage, the brighter the light will be, and the more energy it will consume. Lights with low wattage, are typically used for accent lighting or in smaller areas. Higher wattage lights, are often used for more extensive areas or where higher illumination is needed.
SPECIFICATIONS
Product: Recessed Anti-glare spotlight
Category: Commercial Lights
Lighting Classification: LED Spotlight
Wattage: 3/6/9/12/15/27/30/45Watts
Input Voltage: AC185-265V
Materials: Aluminum
Color: Warm White, Cool White, Daylight

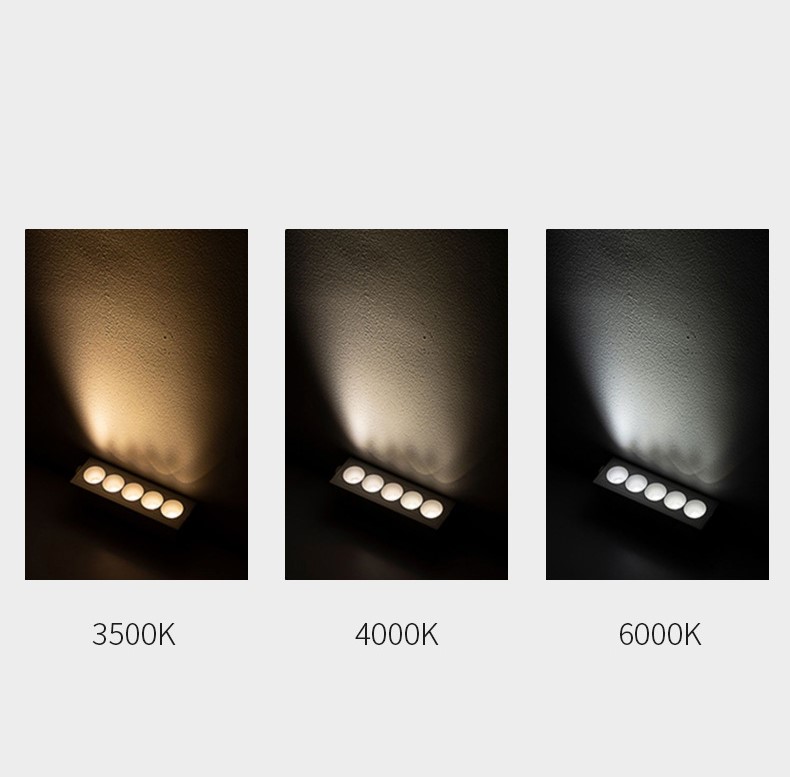

CCT(K): 3500K/4000K/6500K
Lumens: 100-120LM/W
Dimensions: 46*46/69*46/96*46/76*76/148*46/106*106/285*46/417*46
Beam Angle: 15°/24°/38°
CRI: >90
IP Rating: IP20
LED Brand: Cree/Bridgelux
Lifespan: 50,000hours
Warranty: 3 Years Warranty
Installation Methods: Recessed

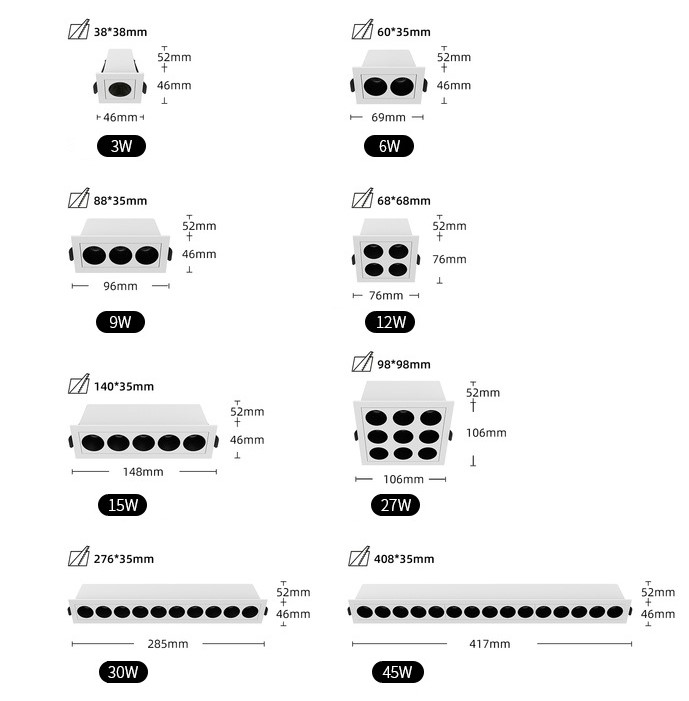

| Model | Wattage | Dimension | Height | Cut-Out |
| DL-1103 | 3W | 46*46mm | 52mm | 38*38mm |
| DL-1106 | 6W | 69*46mm | 52mm | 60*35mm |
| DL-1109 | 9W | 96*46mm | 52mm | 88*35mm |
| DL-1112 | 12W | 76*76mm | 52mm | 68*68mm |
| DL-1115 | 15W | 148*46mm | 52mm | 140*35mm |
| DL-1127 | 27W | 106*106mm | 52mm | 98*98mm |
| DL-1130 | 30W | 285*46mm | 52mm | 276*35mm |
| DL-1145 | 45W | 417*46mm | 52mm | 408*35mm |
FEATURES & BENEFITS
- Simple and elegant appearance,easy to install.

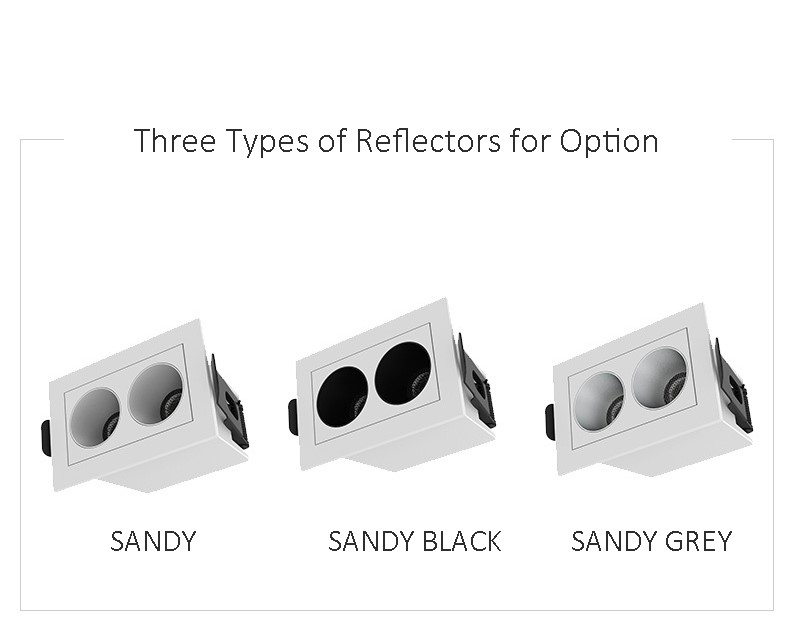

- Various color option for different housing and reflector.
- Adopt imported Led,High CRI,High effeciency,High lumination,No-glare,sofe and tender to Perfectly present the object without black spot and dark area.

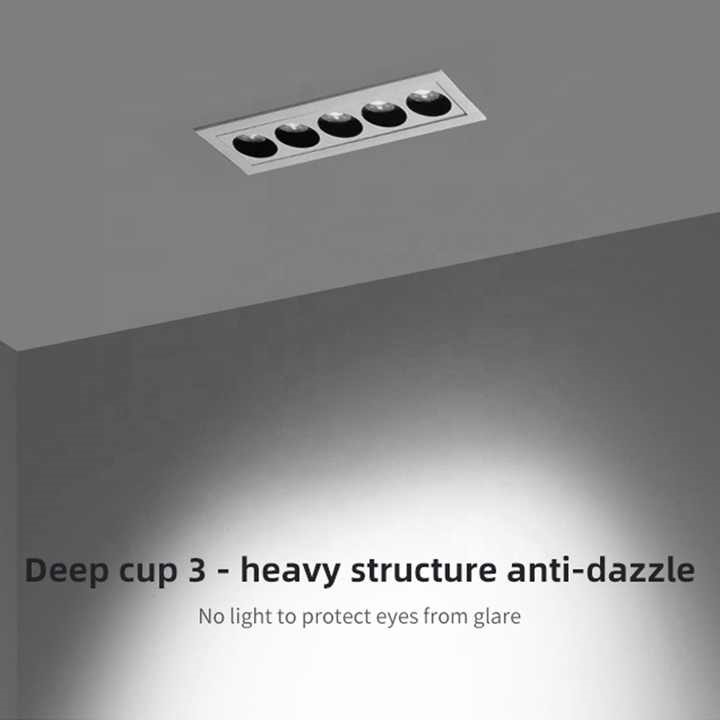

- Self-developed reflector with special optitic design,precise light distribution and high lumen output.No-glare,no black dot and dark area.
- High quality die-casting aluminum heatsink,nice heating dissipation to extend life-span.
INSTALLATION
APPLICATIONS

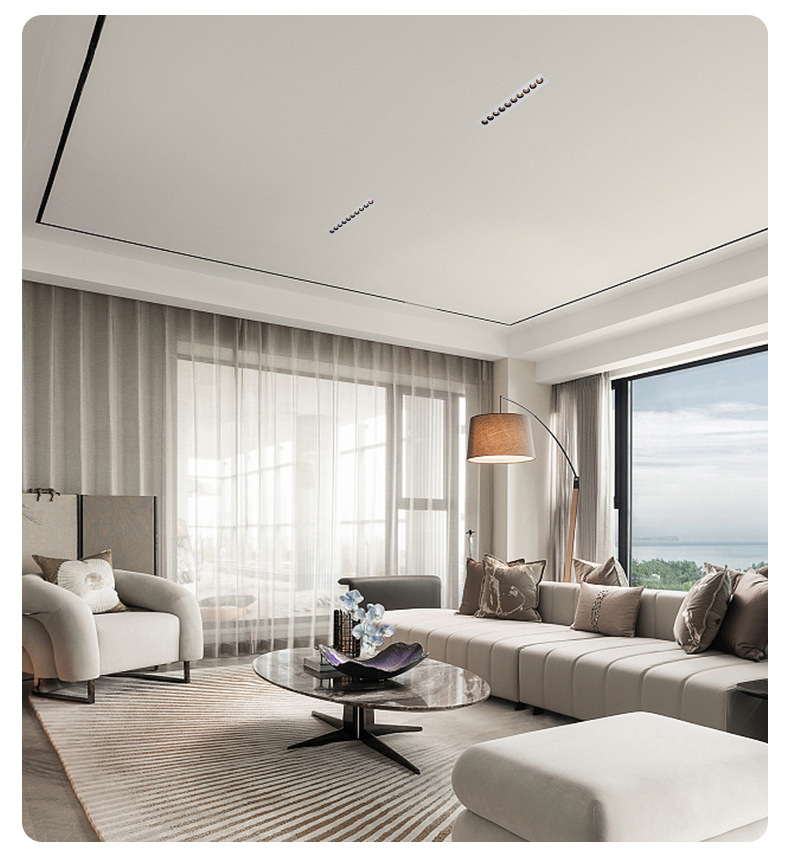

Suitable for accent lighting in the living room, Shop & Shopping Mall, museums, etc.
