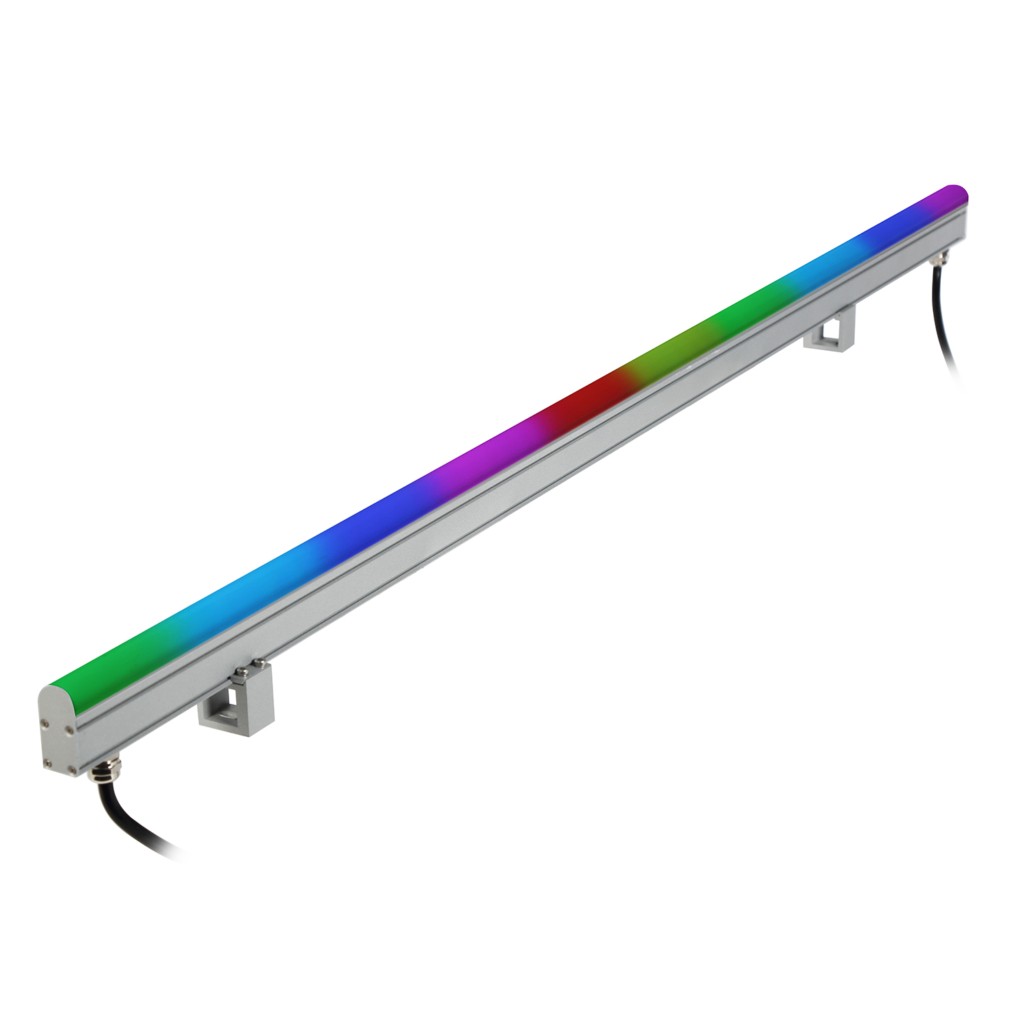

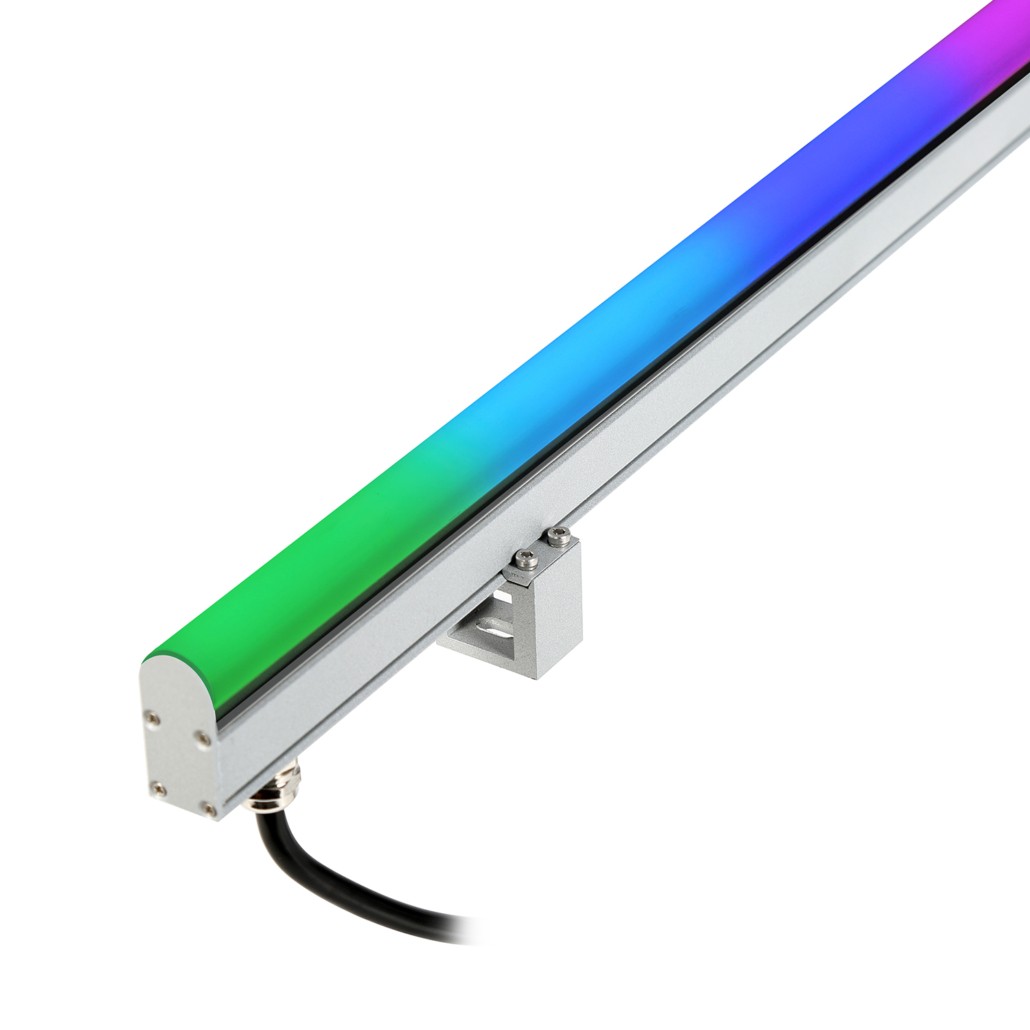

Slim DMX512 LED Linear Tube Light Fixture Outdoor RGB SMD3535 with Opal PC Diffuser W18MM is an Exterior precision-control linear direct view luminaire with intelligent RGB light. They are specifically designed for direct view applications to create long ribbons of color and color-changing effects, and are equipped with a round diffuser and segment control for low resolution content and their high lumen output makes them highly visible in daylight situations. Variable resolution offers the precision to display large scale video, graphics, and intricately designed effects in various architectural, retail, and entertainment settings and other applications needing similar lighting enhancements.
Product: Slim DMX512 LED Linear Tube Light Fixture Outdoor RGB SMD3535 with Opal PC Diffuser W18MM
Model: LM18
Dimension: 1000mm*18mm*74mm
Housing: Alumnium
Diffuser: Opal PC
Wattage: 10W
Voltage: 15-24VDC
Color: Static White/Tunable White/RGB/RGBW
Lighting Source: 60Leds SMD3535
Chip Brand: Epistar/Cree/Osram
Beam Angle: 165 Degree
Pixels Per Meter: 1/5/10/20 Pixels
Control Mode: DMX512
Address Setting: Auto/Manual
IP Rating: IP66
Warranty: Two Years
Working Temperature: -30℃ to +50℃
Remarks:Length/Power/Pixels/Led Qty can be customized
| Models | LM18W | LM18TW | LM18RGB | LM18RGBW |
| LED | ||||
| Color | Static White | Tunable White | RGB | RGBW |
| Light Source | SMD 3535 LED | SMD 3535 LED | SMD 3535 LED | SMD 3535 LED |
| LED Source Color | W:3000K | W:3000K | R:619-624nm | R:619-624nm |
| W:4000K | W:5700K | G:520-540nm | G:520-540nm | |
| W:5700K | B:460-480nm | B:460-480nm | ||
| W:3000K/4000K/5700K/ | ||||
| CRI for White LED | Ra>80 | Ra>80 | – | Ra>80 |
| LED QTY | 60LEDs/m | 120LEDs/m | 60LEDs/m | 120LEDs/m |
| Beam Angle | 110° Clear Cover | |||
| 165° Black Diffuser/Opal Diffuser/Acrylic Diffuser | ||||
| Electrical | ||||
| Input Voltage | 15-24VDC | 15-24VDC | 15-24VDC | 15-24VDC |
| Power Consumption | 10W/Meter | 10W/Meter | 10W/Meter | 10W/Meter |
| 3W/ft | 3W/ft | 3W/ft | 3W/ft | |
| Control | ||||
| Protocols | DMX512 | DMX512 | DMX512 | DMX512 |
| PWM Frequency | 1KHz@16-Bit Grayscale | |||
| 256KHz@8-Bit Grayscale | ||||
| Addressing | Auto Addressing or RDM Manual Addressing | |||
| Pixels | 20Pixels/m | 10Pixels/m | 20Pixels/m | 10Pixels per meter |
| 10Pixels/m | 5Pixels/m | 10Pixels/m | 5Pixels per meter | |
| 5Pixels/m | 1Pixel/m | 5Pixels/m | 1Pixel per meter | |
| 1Pixel/m | 1Pixel/m | |||
| Physical | ||||
| Material | Aluminum 6063 with UV Protected Cover | |||
| Finish Color | Powder coating, Black/Grey Silver or Custom RAL Color | |||
| Diffuser | Clear/PC Black/PC Opal/Acrylic | |||
| Dimensions(LxWxH) With Brackets | 1000mm*18mm*60mm(for Clear Cover) | |||
| 1000mm*18mm*74mm(for PMMA Dome) | ||||
| 1000mm*18mm*74mm(for PC Dome) | ||||
| Length | 250mm/500mm/1000mm/305mm/610mm/915mm/1200mm | |||
| Cable Entry | Bottom Entry, Side Left Entry or Side Right Entry | |||
| Mounting | Fixed Mounting Brackets | |||
| Contact us if you need customized brackets | ||||
| Mounting Orientation | Horizontal or vertical | |||
| Packing | 20pcs 1000mm per Box. Package Size 103*29.5*26cm | |||
| 20pcs 1220mm per Box. Package Size 125*29.5*26cm | ||||
| Environment | ||||
| Operating Temperature | -30℃ to +50℃ | |||
| Storage Temperature | -40℃ to +70℃ | |||
| Humidity | 0-90% non-condensing | |||
| IP Rating | Dry, Damp, Wet locations IP66 | |||
| Warranty | 2Years Limited Warranty from the Date of Manufacture | |||
| Contact us if you need extended warranty | ||||
FEATURES & BENEFITS
- High-end design with Slim lamp body, suitable for multiple installation
- Aluminum 6063 with UV Protected diffuser, anodized and hardened treatment, corrosion-resistant
- Inner organic epoxy resin glue sealed,Static-free and Lightning protection
- Back fixing holder,convenient in installation and maintenance
- Seamless connection among lamps and no dark space at the joint
- More safety in installation and maintenance under DC 24V
- Various type available, Static White/Tunable White/RGB/RGBW
- Standard DMX512 signal
- Energy-saving ,Low-cost maintenance ,Long-life span
