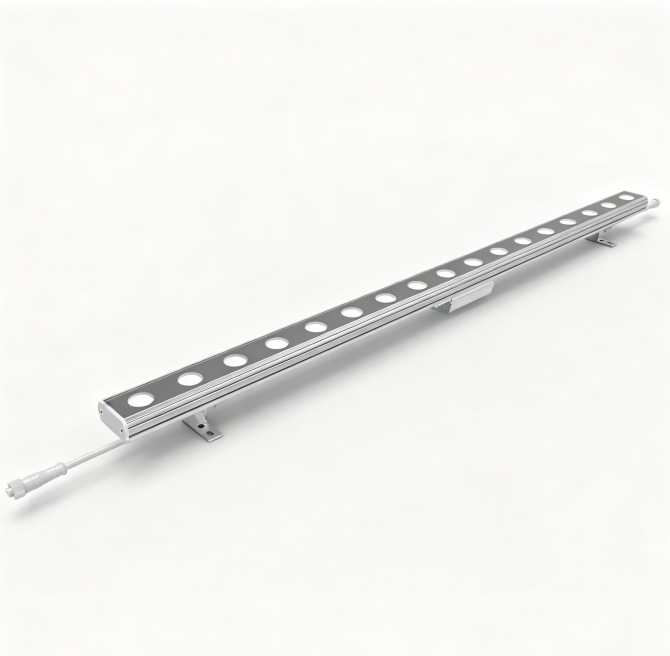

W50 LED DMX Wall Washer Outdoor

W50 LED DMX Wall Washer Outdoor is a fully water resistant and robust bright LED fixture, perfect for both interior and exterior use. Available in range of single colors and DMX controllable RGB. Mount the LED wall washer unit to ceilings, floors and walls with the adjustable bracket for different lighting effects. In addition using corrosion resistant extruded aluminium to make the housing extremely robust and hard wearing. Ideally suited to architectural lighting, landscape lighting, garden lighting, facade lighting, theatres, bridges, hotels, shopping centres, and customized projects.

Email: info@archled.net

Product Features

- Made of imported aluminum die-casting, convection cooling design, strong heat dissipation ability, effectively solve the problem of heat

dissipation of lamps and lanterns

- Adopt imported OSRAM high brightness LED chip, Japan Mitsubishi PMMA Lens material, multiple angles can be selected

- Adjustable bracket, equipped with sliding rails, can be freely adjusted, easy to operate, making installation easier and more convenient

- Adopting breathing valve, waterproof and breathable, balancing internal and external stress, eliminating water mist for better protection.

- Solid copper pins for male and female connectors, integrated anti-dislodgement rubber tip, easy to install, waterproof and durable.

- All use hexagonal screws, 304 stainless steel material, better rust and water resistance.

- Customized length or watts are available according to your needs.

Specifications

Color / Grayscale	Monochrome constant light; 65536 grayscale levels for each of RGB/W channels
Light Source Type	High-power SMD LEDs: 2525 / 3535 / 5050 / 3030
Light Source Quantity	18-36 pcs/m (0.25m-1m in length, customizable upon request)
Housing Material	Aluminum sprayed housing + optical glass top cover
Service Life	50,000 hours
Unit Weight	1.76 kg/m
Operating Voltage	DC 24V / 36V
Maximum Power	18-54 W/m
RGB Luminous Intensity	2700 lm/m
White Light Luminous Flux	3500 lm/m
Beam Angle	15° / 30° / 45° / 60° / 10°×65° / 20°×65° / 20°×45°
Electrical Safety Class	Class III (SELV, safety extra-low voltage)
Operating Temperature	-20°C to +50°C
Storage Temperature	-40°C to +70°C
Ingress Protection Rating	IP66 (dust-tight, powerful water jet protection)
