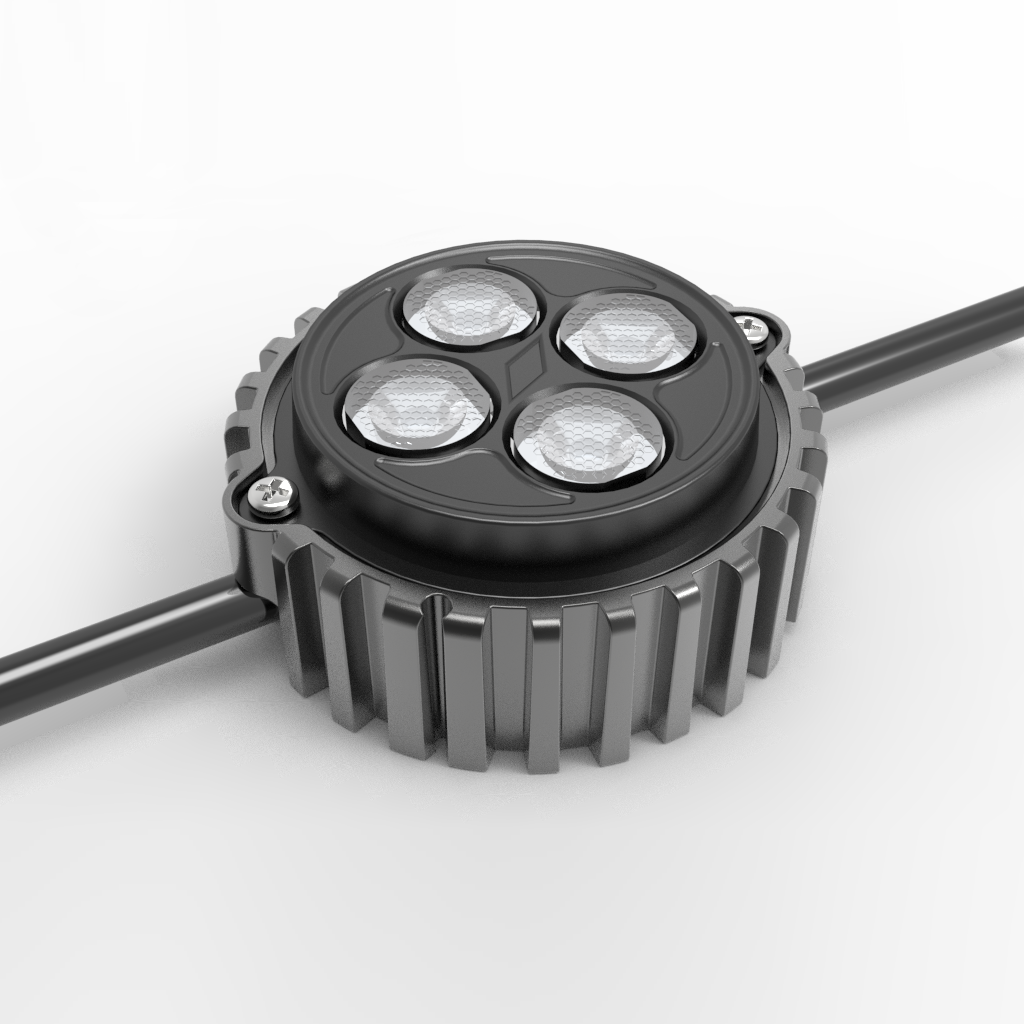

DMX LED Pixel Spotlight RGB IP66 7W

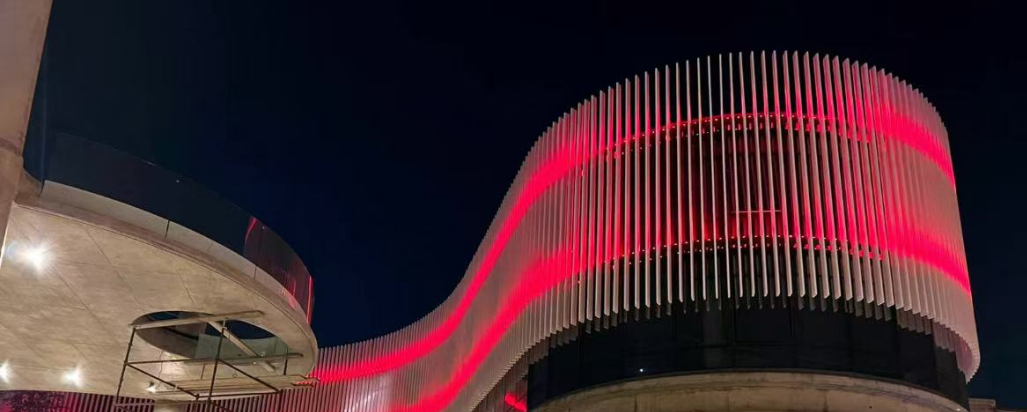

DMX LED Pixel Spotlight RGB IP66 7W is a high-power luminaire specially designed for outdoor landscape lighting. It features a high thermal conductivity die-cast aluminum housing and is fully potted with weather-resistant PU adhesive for superior waterproof performance. The fixture boasts an elegant and sleek appearance. Units are connected via custom national-standard flexible cables, allowing free bending and deformation for installation on irregular facades. Customization is available for installation spacing and lighting colors. It is widely applied to building facades, bridges, canopies and other large-area venues for display, decoration and lighting projects.

Email: info@archled.net

Product Features

- Designed with new-generation DMX parallel bus technology

- Integrated wireless buckle connection with joint-free and pull-resistant design

- Full potting waterproof design with high thermal conductivity adhesive

- Specialized protection design for outdoor lightning protection and electrostatic discharge (ESD)

- Flexible product form for versatile applications with multiple installation methods

- Supports independent current adjustment for each RGB/W channel (low brightness with high grayscale)

Specifications

Parameter	Description
Color / Grayscale	65536 grayscale levels for each RGB/W channel; 256 grayscale levels for each RGB/W channel
Light Source Type	3535 / 3030 SMD LEDs
Light Source Quantity	4 pcs
Base Housing Material	Die-cast aluminum
Top Cover Material	Flame-retardant PC
Lifespan	50,000 hours
Weight	210 g
Operating Voltage	DC 24V ~ 48V
Maximum Power	6 W
RGB Luminous Intensity	300 LM
White Light Luminous Flux	500 LM
Beam Angle	15° / 30° / 20×45°
Electrical Safety Class	Class III (SELV, Safety Extra-Low Voltage)
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 70°C
Ingress Protection Rating	IP66 (dust-tight, protected against powerful water jets)
