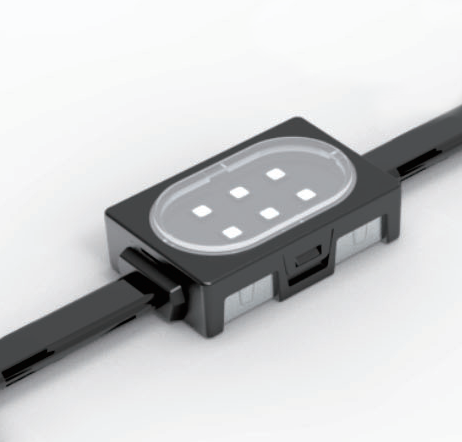

M4 LED Pixel Light RGB IP66

The M4 pixel light is a low power LED string product designed for outdoor landscape lighting. It adopts engineering grade flame-retardant plastic PC shell + heat dissipation aluminum + stainless steel upper cover, which is sealed and waterproof by high thermal conductivity and weather-resistant PU glue; the lamp point is small in size and exquisite in appearance; the light string is connected by the national standard flexible cable, which can be bent and deformed at will, and supports the installation of special-shaped façade; The product spacing and color can be customized; it is suitable for large-area display or lighting of building facades, bridges and skylights.

Email: info@archled.net

Product Features

- Control protocol of new generation dual-channel real-time backup

New DMX512 control protocol high anti-interference wiring mode

Integrated wireless buckle, no-joint anti-drag connection design

Waterproof design of full filling with high thermal conductivity adhesive

Outdoor lightning protection and electrostatic (ESD) special protection design

The product is flexible, flexible in application and various installation methods

Installed with aluminum profile or steel wire, with light transmittance up to 90%

Support RGB/W current independently adjustable (low brightness and high gray)

The plastic shell and independent aluminum heat sink, the first in the industry, weighs only 50% of die-cast aluminum and has the same service life as die-cast aluminum.



Specifications

ParameterSpecification
Color/GrayscaleRGB/W each 4096 grayscale; RGB/W each 65536 grayscale; RGB/W each 256 grayscale
Light Source Type3553/5050/2835/2727
Number of Light Sources1PCS/4PCS/6PCS/8PCS/9PCS
Bottom Shell MaterialFlame retardant PC + High thermal conductivity aluminum
Upper Cover MaterialFlame retardant PC + High thermal conductivity aluminum
Lifespan50,000h
Weight21g
Working VoltageDC15V/48V
Maximum Power0.9W/1.44W/1.88W/2.8W/3W/4W
RGB Light Intensity10cd - 52cd
White Light Intensity15cd - 150cd
Light Beam Angle120°/160°/other angles
Electrical Safety ClassClass III
Operating Temperature-20°C to 50°C
Storage Temperature-40°C to 70°C
Ingress Protection RatingIP66

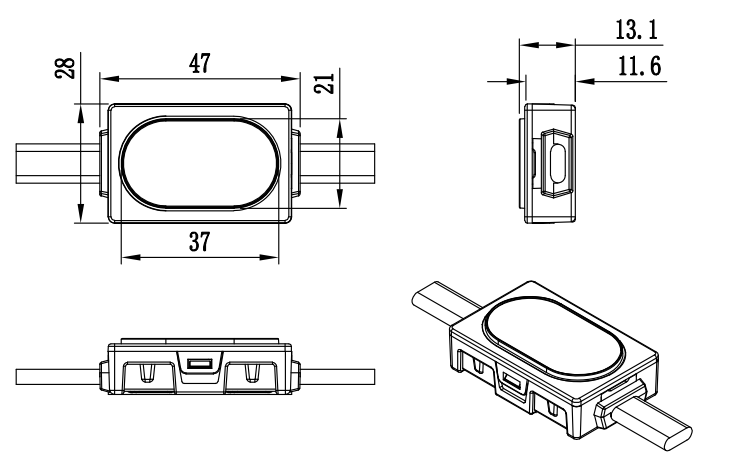

Dimension(mm)
