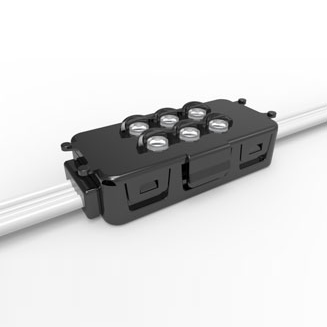

MX3 LED Pixel Light RGB IP66

The MX3 pixel light is a low power LED string product designed for outdoor landscape lighting. It adopts engineering grade flame-retardant plastic PC shell, which is sealed and waterproof by high thermal conductivity and weather-resistant PU glue; the lamp point is small in size and exquisite in appearance; the light string is connected by the national standard flexible cable, which can be bent and deformed at will, and supports the installation of special-shaped façade; The product spacing and color can be customized; it is suitable for large-area display or lighting of building facades, bridges and skylights.

Email: info@archled.net

Product Features

- Control protocol of new generation dual-channel real-time backup

New DMX512 control protocol high anti-interference wiring mode

Integrated wireless buckle, no-joint anti-drag connection design

Waterproof design of full filling with high thermal conductivity adhesive

Outdoor lightning protection and electrostatic (ESD) special protection design

The product is flexible, flexible in application and various installation methods

Installed with aluminum profile or steel wire, with light transmittance up to 90%

Support RGB/W current independently adjustable (low brightness and high gray)

The plastic shell and independent aluminum heat sink, the first in the industry, weighs only 50% of die-cast aluminum and has the same service life as die-cast aluminum.



Specifications

ParameterSpecification
Color/GrayscaleRGB/W each 4096 grayscale; RGB/W each 65536 grayscale; RGB/W each 256 grayscale
Light Source Type3535
Number of Light Sources3pcs / 4pcs / 6pcs
Bottom Shell MaterialFlame retardant PC
Upper Cover MaterialFlame retardant PC
Lifespan50,000h
Weight12g
Working VoltageDC12V / 15V / 24V
Maximum Power0.72W / 0.9W / 1.44W
RGB Light Intensity15cd
White Light Intensity30cd
Light Beam Angle90° / 120°
Electrical Safety ClassClass III
Operating Temperature-20°C to 50°C
Storage Temperature-40°C to 70°C
Ingress Protection RatingIP66

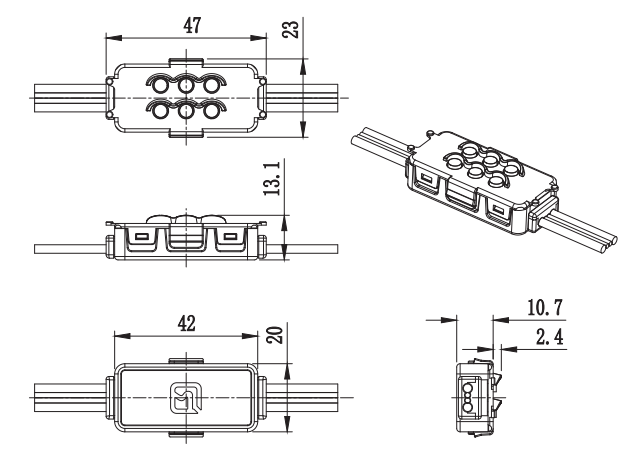

Dimension(mm)
