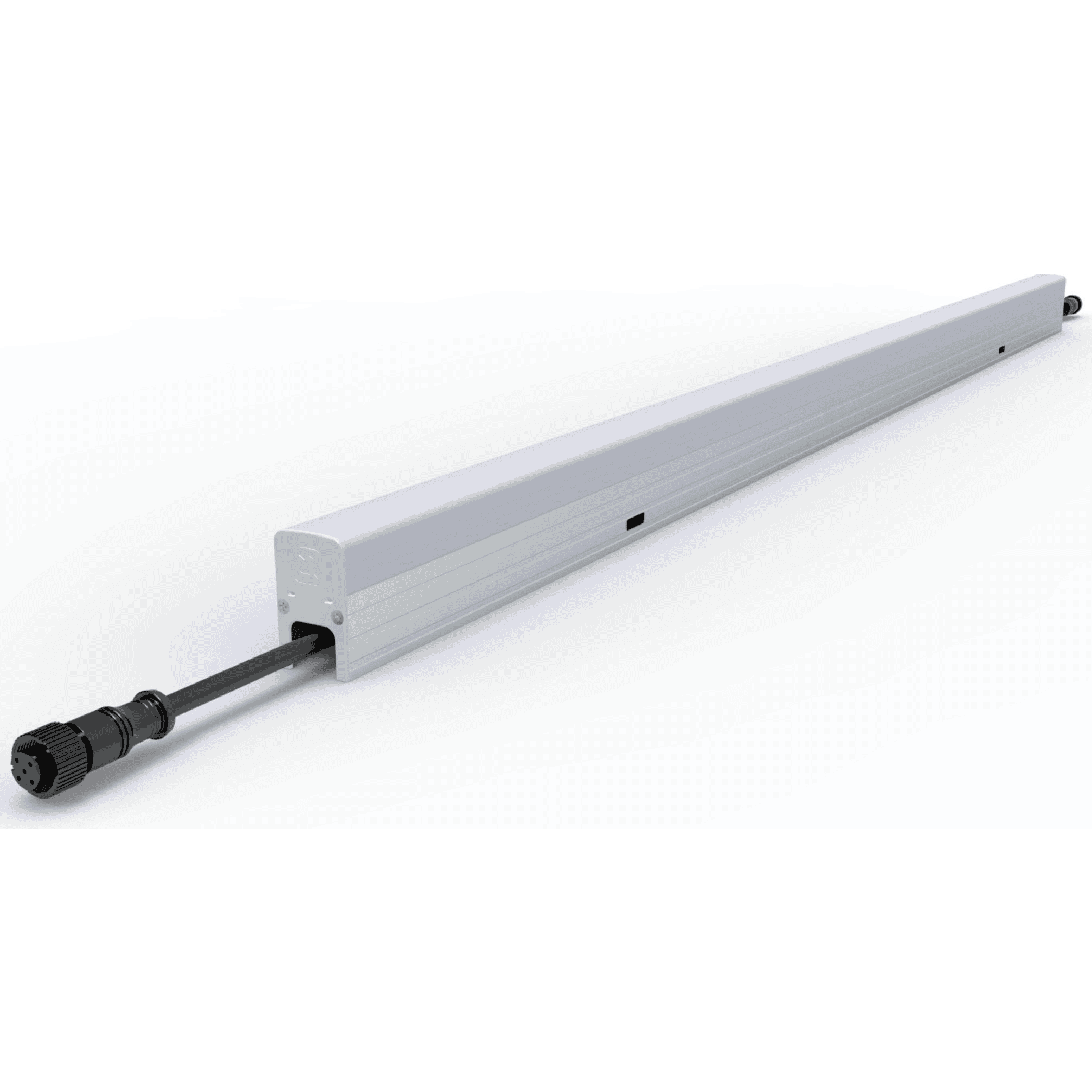

LED Linear Light Bar RGB for Outdoor Facade Lighting W28MM is an Exterior precision-control linear direct view luminaire with intelligent RGB light. They are specifically designed for direct view applications to create long ribbons of color and color-changing effects, and are equipped with a round diffuser and segment control for low resolution content and their high lumen output makes them highly visible in daylight situations. Variable resolution offers the precision to display large scale video, graphics, and intricately designed effects in various architectural, retail, and entertainment settings and other applications needing similar lighting enhancements.
Specifications
| Product | LED Linear Light Bar RGB for Outdoor Facade Lighting W28MM |
| Model | L11 |
| Dimension | 1000mm*28mm*48mm |
| Housing | Alumnium |
| Diffuser | PC |
| Wattage | 12-20W |
| Voltage | 24VDC |
| Color | Static White/Tunable White/RGB/RGBW |
| Lighting Source | SMD3535 |
| Chip Brand | Epistar |
| Beam Angle | 30/45/60/90/120 Degree |
| Control Mode | DMX512 |
| IP Rating | IP66 |
| Warranty | Two Years |
| Working Temperature | -20℃ to +50℃ |
| Remarks | Length/Power/Pixels/Led Qty can be customized |
FEATURES & BENEFITS
- New generation dual channel real-time backup control protocol
- Standard DMX512 Control Protocol
- Industry-leading wireless button-type anti-smash connection design
- High thermal conductivity glue full potting waterproof design
- Outdoor lightning protection and Electrostatic (ESD) special protection design
- Top cover is optional: round or square.
- Stainless steel fixed base is used for the liner light.
- The end cap is embedded in the light cover for seamless splicing use.
- Support RGB/W current separately adjustable (low light and high gray)
