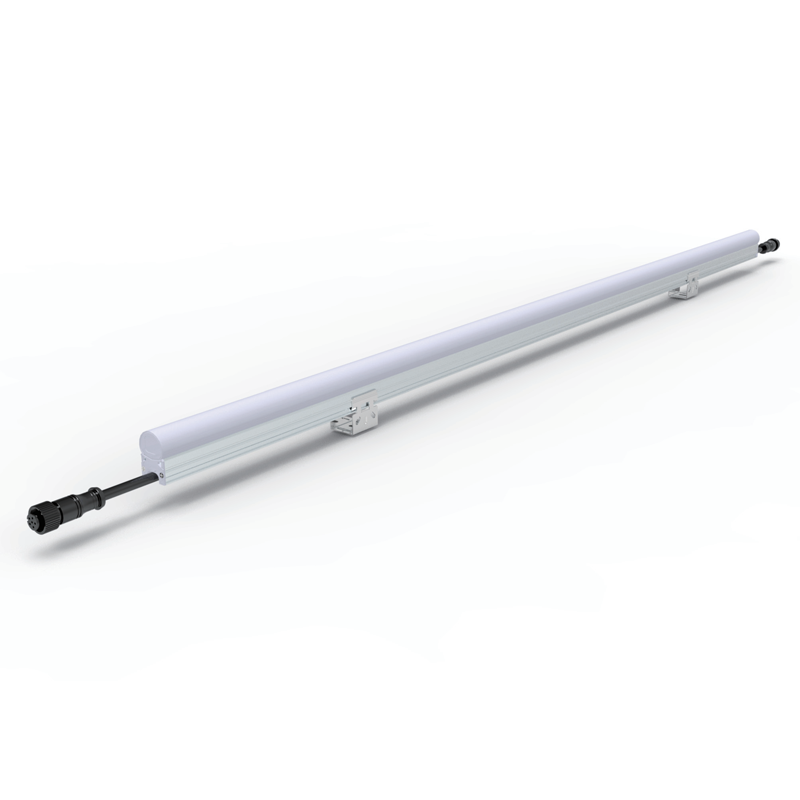

Waterproof DMX512 Control RGBW LED Linear Light DC24V W23MM is a low power LED strip product designed for outdoor landscape lighting. It adopts aviation grade 6063 extruded aluminum shell, flame-retardant plastic PC end cover, and is waterproof by high thermal conductivity and weather-resistant PU glue; the light bar is small in size and exquisite in appearance; the light strips are connected by national standard flexible cable; the product length and color can be Customized, can adapt to the installation of large curves or curved surfaces; suitable for the contour of the building facade, the interior and exterior surfaces are brightened.
Specifications
| Product Name | Waterproof DMX512 Control RGBW LED Linear Light DC24V W23MM |
| Model | L9 |
| Dimension | 1000mm × 23mm × 35mm |
| Housing Material | Aluminum spray coating shell / Anodizing |
| Diffuser Material | Optical PC cover |
| Wattage | 12W - 18W |
| Input Voltage | 24VDC |
| Color Options | Static White / Tunable White / RGB / RGBW |
| Lighting Source | SMD3535 |
| Chip Brand | Epistar |
| Beam Angle | 120° |
| Control Mode | DMX512 |
| IP Rating | IP66 |
| Warranty | 2 Years |
| Working Temperature | -20℃ to +50℃ |
| Remarks | Length, Power, Pixels, and LED Qty can be customized |
FEATURES & BENEFITS
- New generation dual channel real-time backup control protocol
- Standard DMX512 Control Protocol
- Industry-leading wireless button-type anti-smash connection design
- High thermal conductivity glue full potting waterproof design
- Outdoor lightning protection and Electrostatic (ESD) special protection design
- Top cover is optional: round or square.
- Stainless steel fixed base is used for the liner light.
- The end cap is embedded in the light cover for seamless splicing use.
- Support RGB/W current separately adjustable (low light and high gray)
